The C5 Series SMD Placement Machines

Four different models to cover a vast range of SMT manufacturing requirements. All models are built on the same platform with the rugged construction.

The C5 is the ideal Pick and Place machine for medium volume manufacturers, especially those with frequent job changeovers. Its high feeder capacity and fail-safe feeder mounting system gives you the option to load one job while another is running. Operating features that are built into the C5 make it one of the most productive machines in its price range.

See Single Beam SMT Placement Machine C5-192

See Single Beam SMT Placement Machine C5d-256

C5 Series Specifications

Model Designator

The C5 Series Base Configurations

C5-128 Flexible SMT Placement Machine. Price / Performance Leader

C5-128 Pick and Place Machine

128 x 8-mm Feeders
9,400 to 14,200 CPH
Up To 22 Matrix Trays
4 or 8-Spindle Heads
FlexiFix Board Mounting System or The Board
Conveyor with optional Auto-Rail Adjust

more about C5-128

C5-192Single Beam SMT Placement Machine.Versatility without Compromise

192 x 8-mm Feeders
9,400 to 14,200 CPH
Up To 17 Matrix Trays
4 or 8-Spindle Heads
FlexiFix Board Mounting System or The Board
Conveyor with optional Auto-Rail Adjust

more about C5-192

C5d-128 Dual Beam SMT Placement Machine. Fast and Flexible

128 x 8-mm Feeders
22,500 CPH
Up To 30 Matrix Trays
Two 8-Spindle Heads
Auto Centering Board Conveyor

more about C5d-128

C5d-256 Dual Beam SMT Placement Machine. The Ultimate Single Machine Solution

256 x 8-mm Feeders
22,500 CPH
Up To 30 Matrix Trays
Two 8-Spindle Heads
Auto Centering Board Conveyor

more about C5d-256

The C5 Series SMD Placement Machines Specifications

Model	C5-128	C5-192	C5d-128	c5d-256
Feeder Capacity	128	192	128	256
Matrix Tray Capacity	4,7,19,22	2,3,17	1, 2, 15, 16, 30
Number of Heads	1		2
Number of Spindles	4 or 8		8
Placement Rate, CPH, IPC 9850 (1608C component)	9,400 (4 Spindle) 14,200 (8 Spindles)		22,500
Component Range
Smallest	0.25mm X 0.5mm (0.01" X 0.02")
Largest	Square 50mm X 50mm (1.97" X 1.97 ") / Rectangle 26mm X 68mm (1.02" X 2.68")
Maximum Height	15mm (0.59"), taller on request
Minimum Lead / Ball Size Diameter (micro BGA)	0.3mm / 12mil
Placement Accuracy
Chip	± 65μ / 3 sigma
QFP	± 40μ / 3 sigma
Board Conveyor
Minimum Rail Width	55mm (2.2")
Maximum Board Size	400mm x 460mm (15.7" x 18.1")
W / Large Board Option	610mm x 460mm (24" x 18.1"), larger on request
Maximum Board Thickness	8mm (0.315") clearance ( i.e. 6mm thickness + 2mm warp)
Clearance below PCB	40mm (1.57")
Edge Clearance for Conveyor	4mm (0.157")
Conveyor Type	Single stage; left to right, or right to left travel direction (configurable), fixed front rail or fixed rear rail (programmable)
Conveyor Height	952.5 ±12.5 mm (SMEMA)
Nozzle Changer	Two nozzle banks (one for each head) 12 nozzles, standard; 30 maximum for each bank
X\Y Axis Motors & Measuring System	Linear motors and touchless linear encoders with 5μ resolution
Z Axis Motors	DC Servo Motors (8 per head) with 18μ resolution
Rotation (Theta) Motors	DC Servo Motors with .005 degree resolution
Alignment Method	100% Fly by vision alignment with full lead/ball inspection
Camera Type	CCD
Lens Type	Telecentric
Lighting
Standard	Strobe backlighting
Optional	Strobe frontlighting for bottom leaded devices, i.e. BGA's/micro BGA's
Facility Requirements

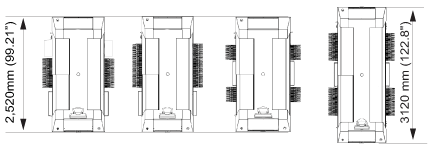

Depth	2,520mm (99.21")			3120 mm(122.8")
Width (With Feeders)	1,670mm (65.75")
Height (With Status Light)	1,850mm (72,83")
Weight (Without Feeders)	1725 kg / 3800 lb	1815 kg / 4000 lb.		2040 kg / 4500 lb
Electrical Connection	208 V, 3 phase 50/60 hz / 25 amps
Compressed Air Supply	6 Bar (85 psi), 10 cfm clean, dry, oil free, filtered 2 mm
Environment	15 - 25°C, 50 - 70% relative humidity
Models	C5-128	C5-192	C5d-128	C5d-256
