The C5 Series SMD Placement Machines

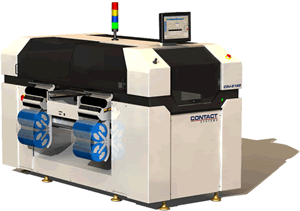

C5d-128 SMD Placement Machines

High throughput and small footprint without sacrifice. Place the full component range from 128 feeders and up to 30 matrix trays.



C5d-128

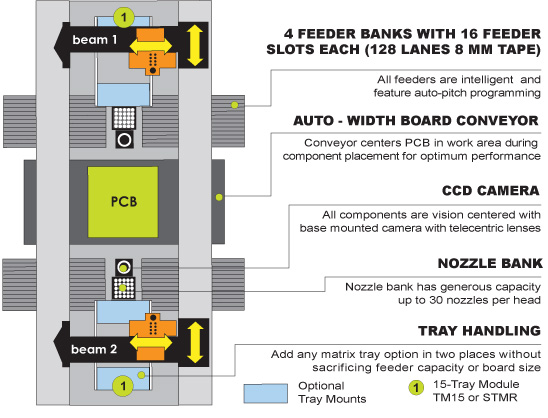

C5d-128 Dual Beam Placement Machine Specification

Feeder Capacity
128 x 8mm
Matrix Tray Capacity
1, 2, 15, 16, 30
Number of Heads and Spindles
2 Heads, 8 Spindles Each
Placement Rate
22,500 cph
Component Range
Smallest
0.25mm X 0.5mm (0.01" X 0.02")
Largest (Square)
50mm X 50mm (1.97" X 1.97 ")
Largest (Rectangle)
26mm X 68mm (1.02" X 2.68")
Maximum Height
15mm (0.59"), taller on request
Minimum Lead Pitch (Fine Pitch)
0.3mm / 12mil
Minimum Ball Size Diameter (micro BGA)
0.3mm / 12mil
Placement Accuracy
Chip
± 65μ / 3 sigma
QFP
± 40μ / 3 sigma
Board Conveyor
Minimum Rail Width
55mm (2.2")
Maximum Board Size
400mm x 460mm (15.7" x 18.1")
W / Large Board Option
610mm x 460mm (24" x 18.1"), larger on request
Maximum Board Thickness
8mm (0.315") clearance ( i.e. 6mm thickness + 2mm warp)
Clearance below PCB
40mm (1.57")
Edge Clearance for conveyor
4mm (0.157")
Conveyor Type
Single stage; left to right, or right to left travel direction (configurable), fixed front rail or fixed rear rail (programmable)
Conveyor Height
952.5 ±12.5 mm (SMEMA)
Nozzle Changer
Two nozzle banks (one for each head) 12 nozzles, standard; 30 maximum for each bank
X\Y Axis Motors & Measuring System
Linear motors and touchless linear encoders with 5μ resolution
Z Axis Motors
DC Servo Motors (8 per head) with 18μ resolution
Rotation (Theta) Motors
DC Servo Motors with .005 degree resolution
Alignment Method
100% Fly by vision alignment with full lead/ball inspection
Camera Type
CCD
Lens Type
Telecentric
Lighting
Standard
Strobe backlighting
Optional
Strobe frontlighting for bottom leaded devices, i.e. BGA's/micro BGA's
Facility Requirements
Depth
2,520mm (99.21")
Width (With Feeders)
1,670mm (65.75")
Height (With Status Light)
1,850mm (72,83")
Weight (Without Feeders)
1815 kg / 4000 lb.
Electrical Connection
208 V, 3 phase 50/60 hz / 25 amps
Compressed Air Supply
6 Bar (85 psi), 10 cfm clean, dry, oil free, filtered 2 mm
Environment
15 - 25°C, 50 - 70% relative humidity
