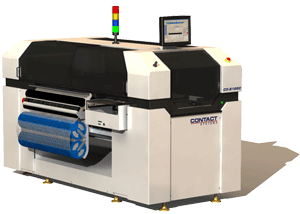

The C5 Series SMD Placement Machines
No job too big or too small. The ultra high feeder capacity enables the forward thinking "Dynamic Changeover" process.

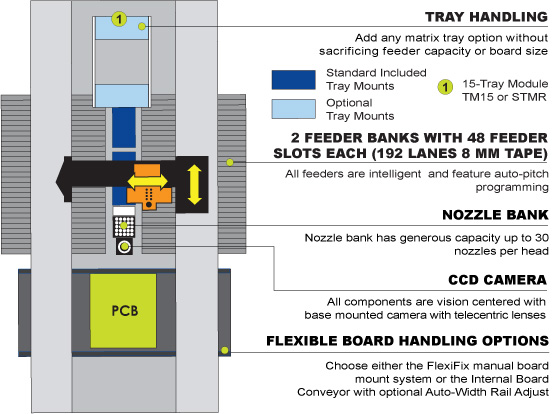

| Feeder Capacity | 192 x 8mm |
| Matrix Tray Capacity | 2, 3, 17 |
| Number of Heads and Spindles | 1 Head, 4 or 8 Spindles |
| Placement Rate | |
| 4 spindle head | 9,400 cph |
| 8 spindle head | 14,200 cph |
| Component Range | |
| Smallest | 0.25mm X 0.5mm (0.01" X 0.02") |
| Largest (Square) | 50mm X 50mm (1.97" X 1.97 ") |
| Largest (Rectangle) | 26mm X 68mm (1.02" X 2.68") |
| Maximum Height | 15mm (0.59"), taller on request |
| Minimum Lead Pitch (Fine Pitch) | 0.3mm / 12mil |
| Minimum Ball Size Diameter (micro BGA) | 0.3mm / 12mil |
| Placement Accuracy | |
| Chip | ± 65μ / 3 sigma |
| QFP | ± 40μ / 3 sigma |
| Board Conveyor | |
| Minimum Rail Width | 55mm (2.2") |
| Maximum Board Size | 400mm x 460mm (15.7" x 18.1") |
| W / Large Board Option | 610mm x 460mm (24" x 18.1"), larger on request |
| Maximum Board Thickness | 8mm (0.315") clearance ( i.e. 6mm thickness + 2mm warp) |
| Clearance below PCB | 40mm (1.57") |
| Edge Clearance for conveyor | 4mm (0.157") |
| Conveyor Type | Single stage; left to right, or right to left travel direction (configurable), fixed front rail or fixed rear rail (programmable) |
| Conveyor Height | 952.5 ±12.5 mm (SMEMA) |
| Nozzle Changer | Two nozzle banks (one for each head) 12 nozzles, standard; 30 maximum for each bank |
| X\Y Axis Motors & Measuring System | Linear motors and touchless linear encoders with 5μ resolution |
| Z Axis Motors | DC Servo Motors (8 per head) with 18μ resolution |
| Rotation (Theta) Motors | DC Servo Motors with .005 degree resolution |
| Alignment Method | 100% Fly by vision alignment with full lead/ball inspection |
| Camera Type | CCD |
| Lens Type | Telecentric |
| Lighting | |
| Standard | Strobe backlighting |
| Optional | Strobe frontlighting for bottom leaded devices, i.e. BGA's/micro BGA's |
| Facility Requirements | |
| Depth | 2,520mm (99.21") |
| Width (With Feeders) | 1,670mm (65.75") |
| Height (With Status Light) | 1,850mm (72,83") |
| Weight (Without Feeders) | 1815 kg / 4000 lb. |
| Electrical Connection | 208 V, 3 phase 50/60 hz / 25 amps |
| Compressed Air Supply | 6 Bar (85 psi), 10 cfm clean, dry, oil free, filtered 2 mm |
| Environment | 15 - 25°C, 50 - 70% relative humidity |
